首页欧美晶振 MtronPTI晶振M12532DG 24.000000,3225mm谐振器,MtronPTI蓝牙晶振

M12532DG 24.000000,3225mm谐振器,MtronPTI蓝牙晶振

频率：24MHz
尺寸：3.2x2.5mm
应　用： M12532DG24.000000,3225mm谐振器,MtronPTI蓝牙晶振,四脚贴片晶振，美国进口晶振，MtronPTI晶振，麦特伦皮晶振，型号：M1253系列晶振，编码为：M12532DG24.000000，频率：24MHz，频率稳定性：20ppm，频率容差：10ppm，...

M12532DG 24.000000,3225mm谐振器,MtronPTI蓝牙晶振,四脚贴片晶振，美国进口晶振，MtronPTI晶振，麦特伦皮晶振，型号：M1253系列晶振，编码为：M12532DG 24.000000，频率：24MHz，频率稳定性：±20ppm，频率容差：±10ppm，负载电容：18pF，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x2.5mm封装，四脚贴片晶振，无源晶振，3225石英晶振，石英晶体谐振器，SMD晶振，具有超小型，轻薄型，高品质晶振，耐热及耐环境特点。应用于：手持式电子设备，PDA、GPS、MP3，便携式仪器，PCMCIA卡，蓝牙等应用。

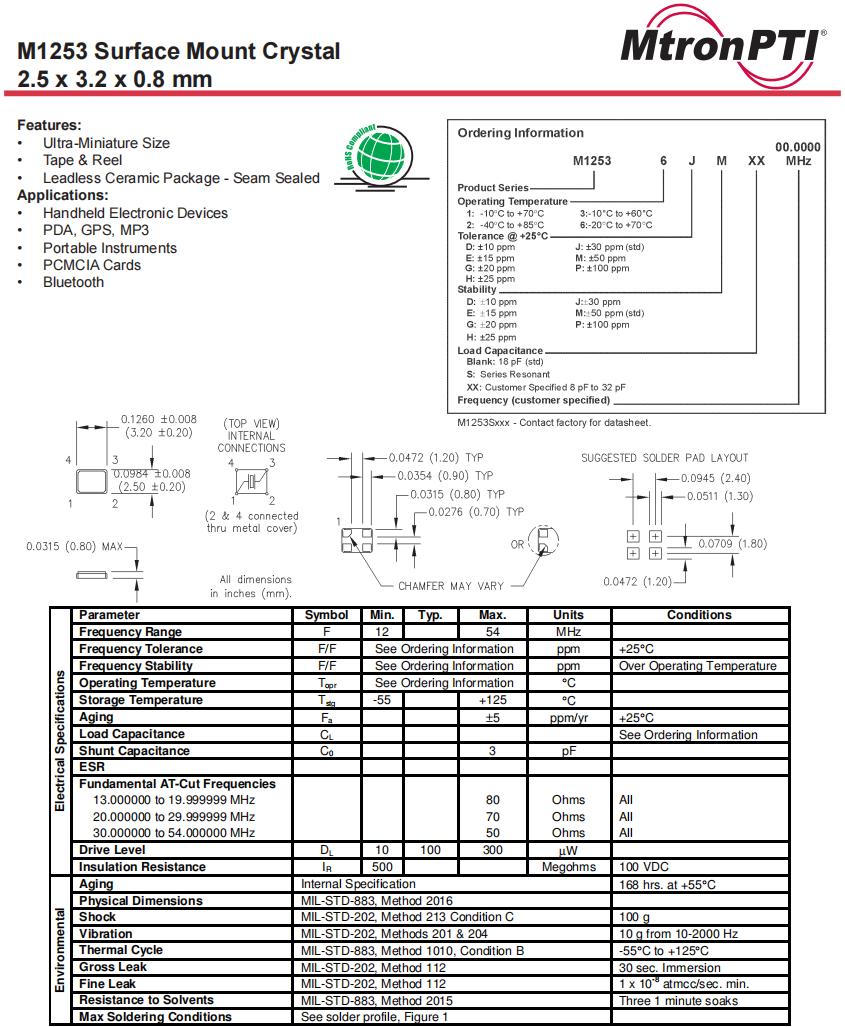

M12532DG 24.000000,3225mm谐振器,MtronPTI蓝牙晶振,四脚贴片晶振,规格表

品牌	MtronPTI麦特伦皮晶振
型号	M1253
物料编码	M12532DG 24.000000
频率	24MHz
频率稳定性	±20ppm
频率容差	±10ppm
负载电容	18pF
工作温度	-40℃至+85℃
尺寸	3.2x2.5mm

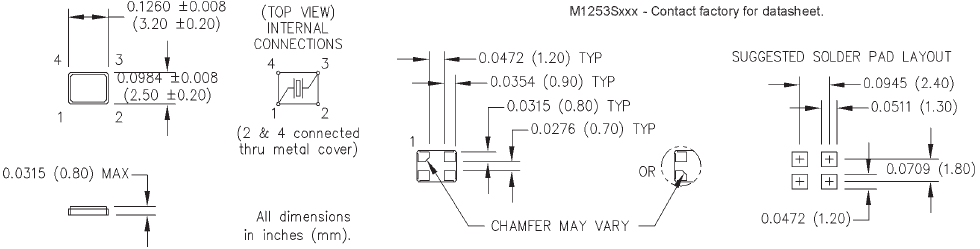

M12532DG 24.000000,3225mm谐振器,MtronPTI蓝牙晶振,四脚贴片晶振,尺寸图

产品编码	进口晶振	频率	包装	频率稳定性
M12531DD 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm
M12531DD20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm
M12531JJ12 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm
M12531JM12 12.000000	M1253	12MHz	2.5 x 3.2 mm	±50 ppm
M12531JM12 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm
M12531JM20 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm
M12531MM16 30.000000	M1253	30MHz	2.5 x 3.2 mm	±50 ppm
M12532DE09 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm
M12532DG 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm
M12532DG08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm
M12532DG12 19.200000	M1253	19.2MHz	2.5 x 3.2 mm	±20 ppm
M12532DG13 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm
M12532DG15 20.000000	M1253	20MHz	2.5 x 3.2 mm	±20 ppm
M12532DG16 14.318180	M1253	14.3182MHz	2.5 x 3.2 mm	±20 ppm
M12532DG16 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm
M12532DG16 25.000000	M1253	15.36MHz	2.5 x 3.2 mm	±20 ppm
M12532DG16 50.000000	M1253	50MHz	2.5 x 3.2 mm	±20 ppm
M12532DG22 30.000000	M1253	30MHz	2.5 x 3.2 mm	±20 ppm
M12532GG 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm
M12532GG 50.000000	M1253	50MHz	2.5 x 3.2 mm	±20 ppm
M12532GJ 24.000000	M1253	24MHz	2.5 x 3.2 mm	±30 ppm
M12532GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm
M12532HH 14.318180	M1253	14.3182MHz	2.5 x 3.2 mm	±25 ppm
M12532HH 16.000000	M1253	16MHz	2.5 x 3.2 mm	±25 ppm
M12532HH 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm
M12532HH 27.000000	无源晶振	27MHz	2.5 x 3.2 mm	±25 ppm
M12532HH 30.000000	M1253	30MHz	2.5 x 3.2 mm	±25 ppm
M12532HH 50.000000	M1253	50MHz	2.5 x 3.2 mm	±25 ppm
M12532JJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm
M12532JJ 27.000000	M1253	27MHz	2.5 x 3.2 mm	±30 ppm
M12532JJ08 16.384000	M1253	16.384MHz	2.5 x 3.2 mm	±30 ppm
M12532JJ08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm
M12532JJ09 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm
M12532JM 15.360000	M1253	15.36MHz	2.5 x 3.2 mm	±50 ppm
M12532JM 27.000000	M1253	27MHz	2.5 x 3.2 mm	±50 ppm
M12532JM 29.491200	M1253	29.4912MHz	2.5 x 3.2 mm	±50 ppm
M12532JM 40.000000	M1253	40MHz	2.5 x 3.2 mm	±50 ppm
M12532JM20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm
M12536GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm
M12536JM 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm
M12536JM 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm
M12536JM 50.000000	M1253	50MHz	2.5 x 3.2 mm	±50 ppm
M1253S072 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm
M1253S107 52.000000	M1253	52MHz	2.5 x 3.2 mm	±15 ppm
M1253S108 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm
M1253S116 16.000000	M1253	16MHz	2.5 x 3.2 mm	±10 ppm, ±15 ppm
M1253S162 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm
M1253S164 48.000000	M1253	48MHz	2.5 x 3.2 mm	±10 ppm
M1253S204 25.000000	M1253	25MHz	2.5 x 3.2 mm	±100 ppm
M1253S207 20.736000	M1253	20.736MHz	2.5 x 3.2 mm	±10 ppm
M1253S208 26.000000	M1253	26MHz	2.5 x 3.2 mm	±9 ppm
M1253S211 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm
M1253S218 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm
M1253S219 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm
M1253S220 48.000000	M1253	48MHz	2.5 x 3.2 mm	±15 ppm
M1253S224 32.000000	M1253	32MHz	2.5 x 3.2 mm	±20 ppm
M1253S225 26.000000	M1253	26MHz	2.5 x 3.2 mm	±10 ppm
M1253S226 12.000000	M1253	12MHz	2.5 x 3.2 mm	±20 ppm
M1253S227 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm
M1253S229 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm
M1253S230 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm
